Specification: 50x50x3000mm
Thickness: 1.2mm
Function maintenance: Rounded-edge Cable Tray,Fully Sealed
Color/Material: zinc
Surface: hot-dip galvanizing
Rounded-Edge Cable Tray – Product Description
Our Rounded-Edge Cable Tray is designed to provide a safe, efficient, and cable-friendly solution for modern wiring installations. The smooth, rounded edges along the tray profile significantly reduce the risk of damage to cable insulation during installation and maintenance, ensuring long-term system reliability.
Made from high-quality materials such as corrosion-resistant steel or aluminum, this cable tray offers excellent structural strength while maintaining a lightweight design for easy handling. The rounded-edge construction also improves safety for installers by eliminating sharp burrs and edges that could cause injury.
Ideal for commercial, industrial, and data center applications, the rounded-edge cable tray supports organized cable routing, promotes passive cooling through open airflow, and meets stringent safety standards for cable protection and workplace safety.
Available in various widths, lengths, and finishes (including powder-coated and hot-dip galvanized) to suit different environmental and load requirements.
| Art NO. | R1A2-505G |
|---|---|
| Description | Rounded-edge Cable Tray |
| Manufacturer | BAIZHU |
| Colour | zinc |
| Material | Steel |
| Surface | hot-dip galvanizing |
| Surface standard | DIN EN 10346 |
| Connector version | yes |
| Mounting system fastening type | Floor/Ceiling/Wall |
|---|---|
| Walkable | no |
| With cove | yes |
| Mounting perforation in base | yes |
| Rustproof steel, pickled | no |
| Side perforation | yes |

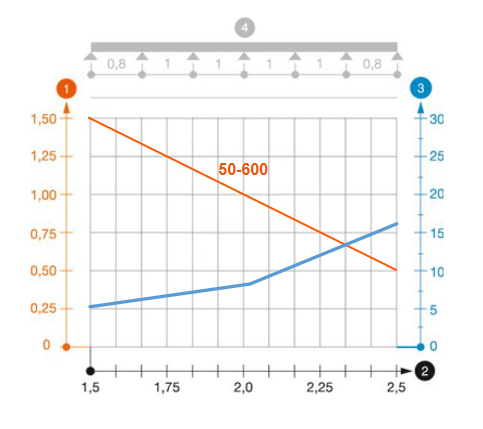

| Load test type according to IEC 61537 |
Type Ⅱ |
| Mounting system fastening type | Screwed |

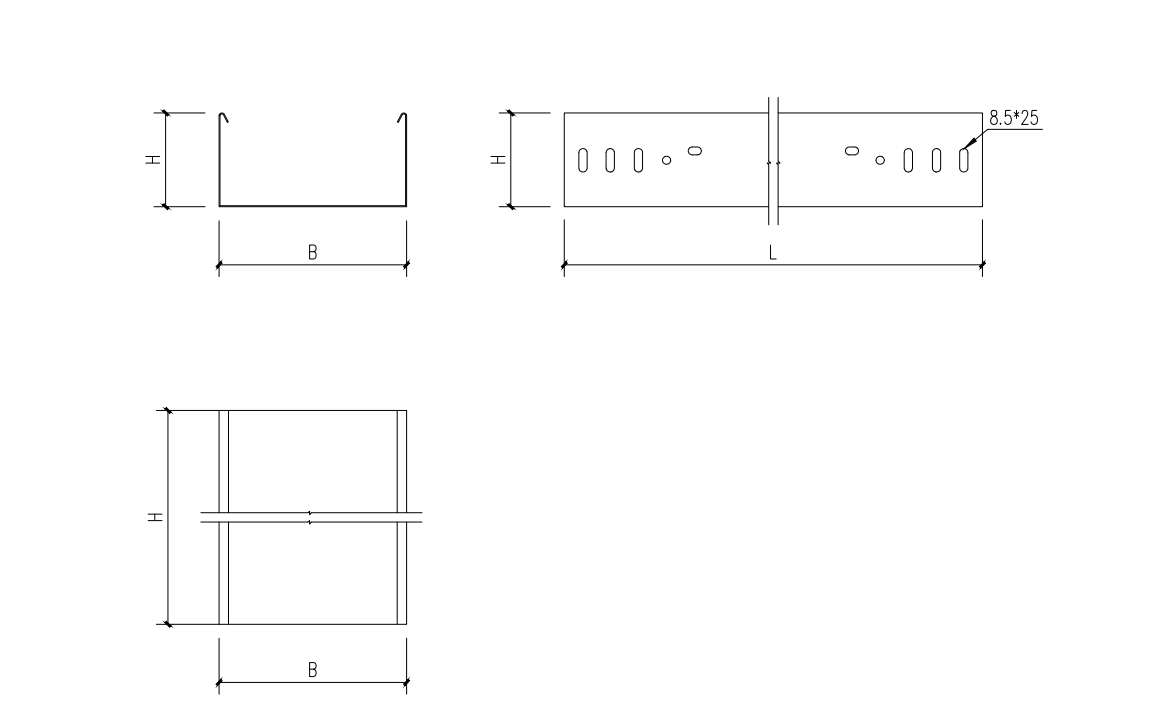

| length(mm) | width(mm) | height(mm) | Plate thickness(mm) | Functional maintenance | color | Material | Coating | Product ID | Quantity | Operation |
|---|---|---|---|---|---|---|---|---|---|---|
| 3000 | 50 | 50 | 1.2 | Rounded-edge Cable Tray,Fully Sealed | zinc | Steel | hot-dip galvanizing | TP/R1A2-505G |
pcs
|
|
| 3000 | 100 | 50 | 1.2 | Rounded-edge Cable Tray,Fully Sealed | zinc | Steel | hot-dip galvanizing | TP/R1A2-510G |
pcs
|
|
| 3000 | 150 | 50 | 1.2 | Rounded-edge Cable Tray,Fully Sealed | zinc | Steel | hot-dip galvanizing | TP/R1A2-515G |
pcs
|
|
| 3000 | 200 | 50 | 1.2 | Rounded-edge Cable Tray,Fully Sealed | zinc | Steel | hot-dip galvanizing | TP/R1A2-520G |
pcs
|
|
| 3000 | 300 | 50 | 1.2 | Rounded-edge Cable Tray,Fully Sealed | zinc | Steel | hot-dip galvanizing | TP/R1A2-530G |
pcs
|
|
| 3000 | 400 | 50 | 1.2 | Rounded-edge Cable Tray,Fully Sealed | zinc | Steel | hot-dip galvanizing | TP/R1A2-540G |
pcs
|
|
| 3000 | 500 | 50 | 1.2 | Rounded-edge Cable Tray,Fully Sealed | zinc | Steel | hot-dip galvanizing | TP/R1A2-550G |
pcs
|
|
| 3000 | 600 | 50 | 1.2 | Rounded-edge Cable Tray,Fully Sealed | zinc | Steel | hot-dip galvanizing | TP/R1A2-560G |
pcs
|
|
| 3000 | 50 | 50 | 1.5 | Rounded-edge Cable Tray,Fully Sealed | zinc | Steel | hot-dip galvanizing | TP/R1A3-505G |
pcs
|
|
| 3000 | 100 | 50 | 1.5 | Rounded-edge Cable Tray,Fully Sealed | zinc | Steel | hot-dip galvanizing | TP/R1A3-510G |
pcs
|
|
| 3000 | 150 | 50 | 1.5 | Rounded-edge Cable Tray,Fully Sealed | zinc | Steel | hot-dip galvanizing | TP/R1A3-515G |
pcs
|
|
| 3000 | 200 | 50 | 1.5 | Rounded-edge Cable Tray,Fully Sealed | zinc | Steel | hot-dip galvanizing | TP/R1A3-520G |
pcs
|
|
| 3000 | 300 | 50 | 1.5 | Rounded-edge Cable Tray,Fully Sealed | zinc | Steel | hot-dip galvanizing | TP/R1A3-530G |
pcs
|
|
| 3000 | 400 | 50 | 1.5 | Rounded-edge Cable Tray,Fully Sealed | zinc | Steel | hot-dip galvanizing | TP/R1A3-540G |
pcs
|
|
| 3000 | 500 | 50 | 1.5 | Rounded-edge Cable Tray,Fully Sealed | zinc | Steel | hot-dip galvanizing | TP/R1A3-550G |
pcs
|
|
| 3000 | 600 | 50 | 1.5 | Rounded-edge Cable Tray,Fully Sealed | zinc | Steel | hot-dip galvanizing | TP/R1A3-560G |
pcs
|
|
| 3000 | 50 | 50 | 2.0 | Rounded-edge Cable Tray,Fully Sealed | zinc | Steel | hot-dip galvanizing | TP/R1A4-505G |
pcs
|
|
| 3000 | 100 | 50 | 2.0 | Rounded-edge Cable Tray,Fully Sealed | zinc | Steel | hot-dip galvanizing | TP/R1A4-510G |
pcs
|
|
| 3000 | 150 | 50 | 2.0 | Rounded-edge Cable Tray,Fully Sealed | zinc | Steel | hot-dip galvanizing | TP/R1A4-515G |
pcs
|
|
| 3000 | 200 | 50 | 2.0 | Rounded-edge Cable Tray,Fully Sealed | zinc | Steel | hot-dip galvanizing | TP/R1A4-520G |
pcs
|
|
| 3000 | 300 | 50 | 2.0 | Rounded-edge Cable Tray,Fully Sealed | zinc | Steel | hot-dip galvanizing | TP/R1A4-530G |
pcs
|
|
| 3000 | 400 | 50 | 2.0 | Rounded-edge Cable Tray,Fully Sealed | zinc | Steel | hot-dip galvanizing | TP/R1A4-540G |
pcs
|
|
| 3000 | 500 | 50 | 2.0 | Rounded-edge Cable Tray,Fully Sealed | zinc | Steel | hot-dip galvanizing | TP/R1A4-550G |
pcs
|
|
| 3000 | 600 | 50 | 2.0 | Rounded-edge Cable Tray,Fully Sealed | zinc | Steel | hot-dip galvanizing | TP/R1A4-560G |
pcs
|
