Specification: 50mm50mm3000mm
Thickness: 1.2mm
Function maintenance: Fully Sealed
Color/Material: zinc
Surface: Strip galvanized
Self-Locking Cable Tray – Tool-Free Rapid Installation
Self-locking cable tray features a unique snap-fit connection design. No bolts, nuts, or special tools required – simply push the sections together until they lock automatically. Installation speed increases by over 50% compared to traditional bolted trays, making it ideal for overhead work or confined spaces. The robust structure is vibration-resistant and secure, meeting the needs of rapid cabling and future maintenance in industrial and commercial buildings. Available in galvanized steel, stainless steel, or aluminum alloy. Custom widths, heights and thicknesses offered.

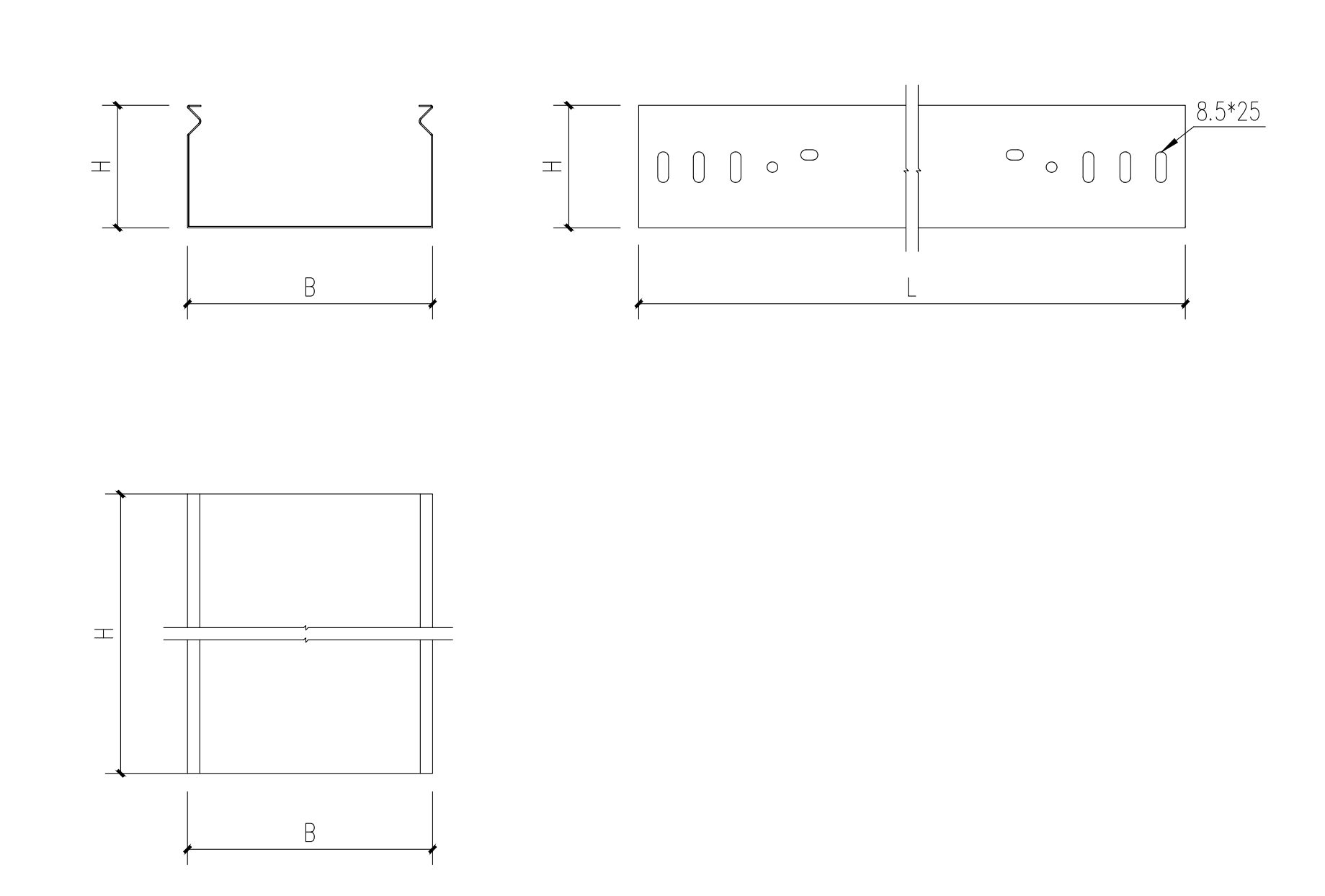

Technical data sheet
RKSM 35型电缆桥架负载图
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| length(mm) | width(mm) | height(mm) | Plate thickness(mm) | Functional maintenance | color | Material | Coating | Product ID | Quantity | Operation |
|---|---|---|---|---|---|---|---|---|---|---|
| 3000 | 50 | 50 | 1.2 | Fully Sealed | zinc | Steel | Strip galvanized | L1A2-505G |
pcs
|
|
| 3000 | 100 | 50 | 1.2 | Fully Sealed | zinc | Steel | Strip galvanized | L1A2-510G |
pcs
|
|
| 3000 | 150 | 50 | 1.2 | Fully Sealed | zinc | Steel | Strip galvanized | L1A2-515G |
pcs
|
|
| 3000 | 200 | 50 | 1.2 | Fully Sealed | zinc | Steel | Strip galvanized | L1A2-520G |
pcs
|
|
| 3000 | 300 | 50 | 1.2 | Fully Sealed | zinc | Steel | Strip galvanized | L1A2-530G |
pcs
|
|
| 3000 | 400 | 50 | 1.2 | Fully Sealed | zinc | Steel | Strip galvanized | L1A2-540G |
pcs
|
|
| 3000 | 500 | 50 | 1.2 | Fully Sealed | zinc | Steel | Strip galvanized | L1A2-550G |
pcs
|
|
| 3000 | 600 | 50 | 1.2 | Fully Sealed | zinc | Steel | Strip galvanized | L1A2-560G |
pcs
|
|
| 3000 | 50 | 50 | 1.5 | Fully Sealed | zinc | Steel | Strip galvanized | L1A3-505G |
pcs
|
|
| 3000 | 100 | 50 | 1.5 | Fully Sealed | zinc | Steel | Strip galvanized | L1A3-510G |
pcs
|
|
| 3000 | 150 | 50 | 1.5 | Fully Sealed | zinc | Steel | Strip galvanized | L1A3-515G |
pcs
|
|
| 3000 | 200 | 50 | 1.5 | Fully Sealed | zinc | Steel | Strip galvanized | L1A3-520G |
pcs
|
|
| 3000 | 300 | 50 | 1.5 | Fully Sealed | zinc | Steel | Strip galvanized | L1A3-530G |
pcs
|
|
| 3000 | 400 | 50 | 1.5 | Fully Sealed | zinc | Steel | Strip galvanized | L1A3-540G |
pcs
|
|
| 3000 | 500 | 50 | 1.5 | Fully Sealed | zinc | Steel | Strip galvanized | L1A3-550G |
pcs
|
|
| 3000 | 600 | 50 | 1.5 | Fully Sealed | zinc | Steel | Strip galvanized | L1A3-560G |
pcs
|
|
| 3000 | 50 | 50 | 2.0 | Fully Sealed | zinc | Steel | Strip galvanized | L1A4-505G |
pcs
|
|
| 3000 | 100 | 50 | 2.0 | Fully Sealed | zinc | Steel | Strip galvanized | L1A4-510G |
pcs
|
|
| 3000 | 150 | 50 | 2.0 | Fully Sealed | zinc | Steel | Strip galvanized | L1A4-515G |
pcs
|
|
| 3000 | 200 | 50 | 2.0 | Fully Sealed | zinc | Steel | Strip galvanized | L1A4-520G |
pcs
|
|
| 3000 | 300 | 50 | 2.0 | Fully Sealed | zinc | Steel | Strip galvanized | L1A4-530G |
pcs
|
|
| 3000 | 400 | 50 | 2.0 | Fully Sealed | zinc | Steel | Strip galvanized | L1A4-540G |
pcs
|
|
| 3000 | 600 | 50 | 2.0 | Fully Sealed | zinc | Steel | Strip galvanized | L1A4-550G |
pcs
|
|
| 3000 | 600 | 50 | 2.0 | Fully Sealed | zinc | Steel | Strip galvanized | L1A4-560G |
pcs
|
允许电缆托盘/梯架负载，单位：kN/m，无人力负载
支撑隔距，单位：m
在允许的允许的KN/m情况下的侧轨弯折，单位：mm
测试过程中的负载方案
带有电缆桥架/梯子宽度的负载曲线，单位为 mm
取决于跨度的钢轨挠度曲线
