Suspended Support (U Profile) – Product Description

The Suspended Support with U Profile is a robust and versatile overhead mounting solution designed for suspending cable trays, cable ladders, conduits, pipes, and other electrical or mechanical components from ceilings, overhead structures, or concrete slabs. The distinctive U-shaped profile provides exceptional structural strength while offering a practical, open channel for easy installation and future system adjustments.

The U profile is typically manufactured from high-quality steel (pre-galvanized, hot-dip galvanized, or stainless steel) and features a continuous channel with inward-turned lips or flanges along the open edges. This design significantly enhances the profile's moment of inertia and bending resistance, allowing for longer spans and heavier load capacities compared to flat bar or angle profiles.

The open U-shape facilitates quick and flexible attachment of threaded rods, hangers, brackets, or other hardware. Nuts and bolts can be easily inserted and repositioned along the channel without the need for drilling, thanks to the slotted or punched hole patterns commonly available. This modularity enables on-site adjustments and reduces installation time and labor costs.

When used as part of a suspended support system, the U profile acts as the primary horizontal member (traverse) or continuous stringer, supported by threaded rods anchored to the overhead structure. The system allows for precise leveling and height adjustment, accommodating variations in ceiling elevations and ensuring proper cable tray slope for drainage or other requirements.

Key applications include:

• Suspending cable trays and ladders in industrial plants, parking garages, tunnels, and commercial buildings

• Overhead support for electrical conduits and piping systems

• Seismic bracing and restraint systems in earthquake-prone regions

• Support for HVAC components and other mechanical services

The suspended U profile support system offers several advantages:

• High strength-to-weight ratio

• Easy adjustability and reconfigurability

• Clean, professional appearance with no onsite drilling or welding

• Compatible with standard strut channel fittings, spring nuts, and accessories

• Corrosion-resistant finishes for long-term durability in indoor and protected outdoor environments

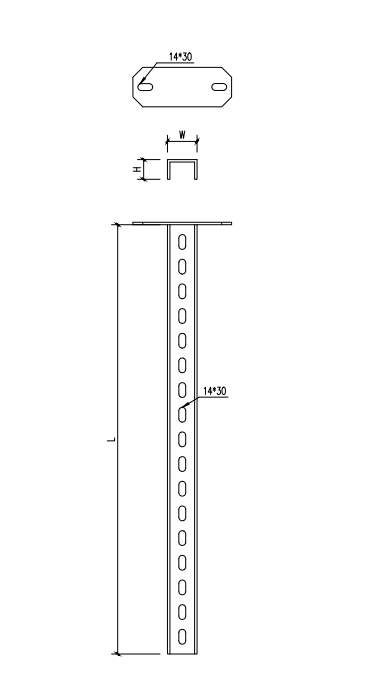

Available in a range of sizes (commonly 41×41mm, 41×21mm, or customized dimensions), wall thicknesses, and lengths to meet specific load and span requirements. Custom punching patterns and pre-assembled support kits are also available upon request.
